Typical Malta PV system components

See what is involved in a solar-panel installation, from planning to the finished system.

Explore the installation photographs and the component explanations below.

Concrete plinths for ballast

When penetrations into the roof are undesired, we can use concrete ballast blocks, which are placed on roof surface, and to which mounting brackets for solar panels can be anchored with stainless steel expansion bolts. Other mounting arrangements are possible depending on exact requirements.

Mounting structure for solar panels

Solar panels are attached to a special mounting structure, which is placed in optimum orientation and inclination angle to maximise solar performance. Our mounting structures are rated to withstand the highest wind speeds recorded over Maltese Islands, and are covered by a 20 year warranty.

Conduit and cabling

Solar panels are connected to solar inverter by means of a special solar cable. We use superior quality solar cable which is certified by TUV. This cable ensures minimum transmission losses, and is protected by UV-stabilized PVC sheeting. Solar cables are routed through conduits to ensure extra protection for the installation.

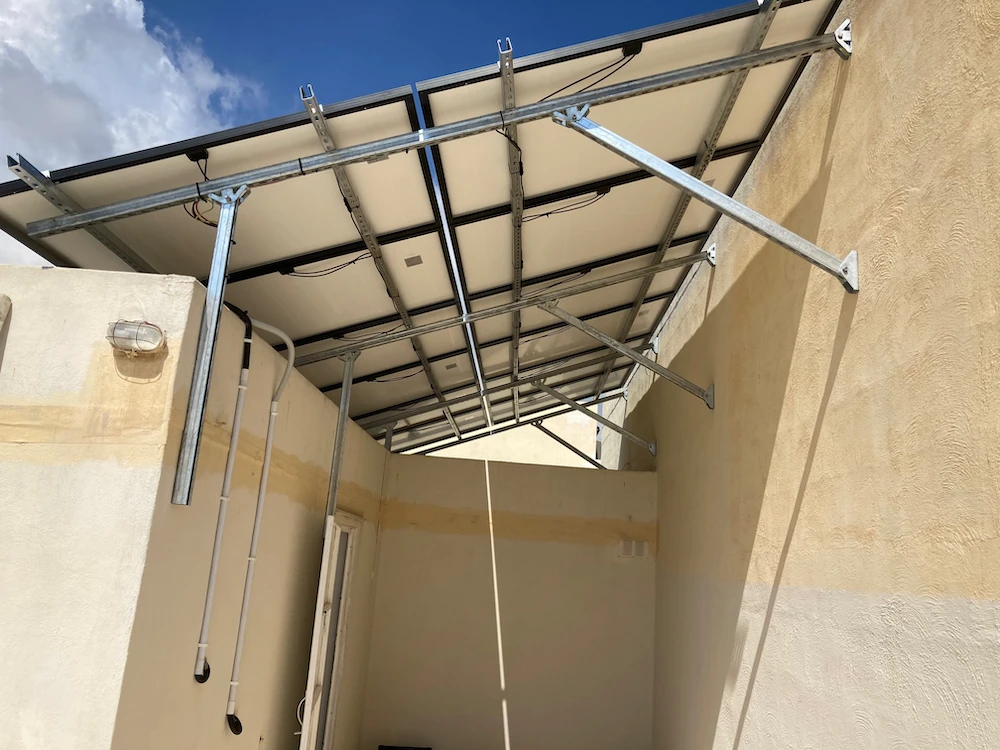

Bespoke structure

Sometimes you’d want a custom-made, galvanised, sturdy structure that will elevate your PV system while giving you plenty of usable space underneath.

We do those too.

Battery

Battery storage unit, connects to the hybrid inverter and powers your home.

Hybrid inverter

Is powered-up by solar panels, and connected to your Enemalta meter.

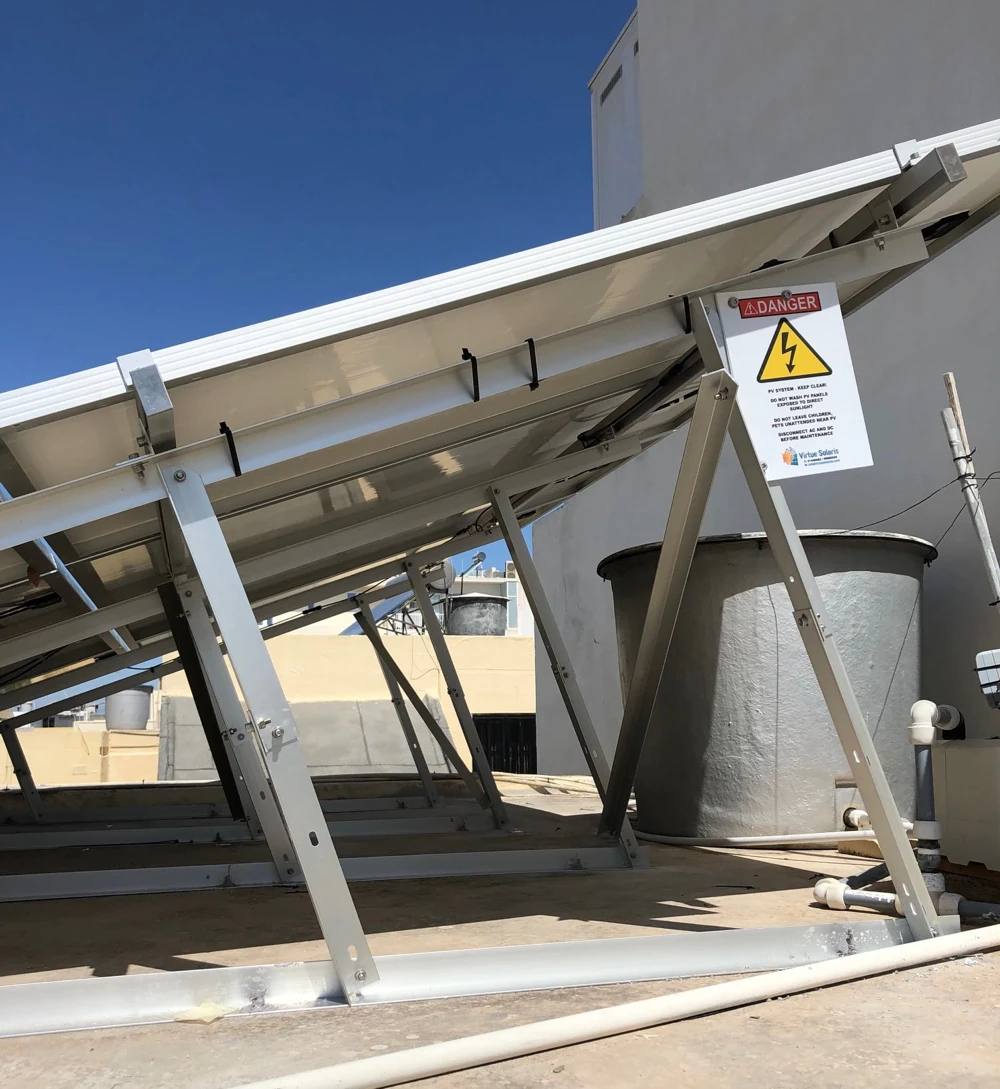

Roof anchors

One of the best options to anchor your solar panels, is to use special stainless steel anchors that are inserted and sealed with a waterproofing compound into the roof.

Roof anchors

Roof anchors

Bespoke structure variation

Another way of using your roof space to the best it can offer.

High efficiency solar panels

Our high efficiency solar panels utilize the latest monocrystalline half cell multi-busbar PERC cell technology to provide best possible yield. The cells inside solar panels convert sunlight into electricity. Solar panels are typically connected in series forming a string. Each string is then wired into MPPT port of the inverter, which converts direct current from solar panels into alternating current (AC), that can be used to supply appliances or be fed to the grid.

Another type of structure

When placing of solar panels on roof terrace is not desired, solar panels can be mounted on an elevated gazebo-style mounting structure.
